Jon Boat Bows - PG01



RS or RL

Bow Seat; Center Cross Seat (moved forward); Rear Cross Seat; O.D. Green Paint

CS or CL

Bow Seat; Rear Cross Seat; O.D. Green Paint

UVCS or UVCL

Bow Seat; Rear Cross Seat; O.D. Green Paint

UVCS FCLW or UVCL FCLW

Bow Seat; Full Center Seat Livewell; Rear Seat; O.D. Green Paint

MVCS CBLW or MVCL CBLW

Bow Seat; Center Seat Box Livewell; Rear Seat; O.D. Green Paint

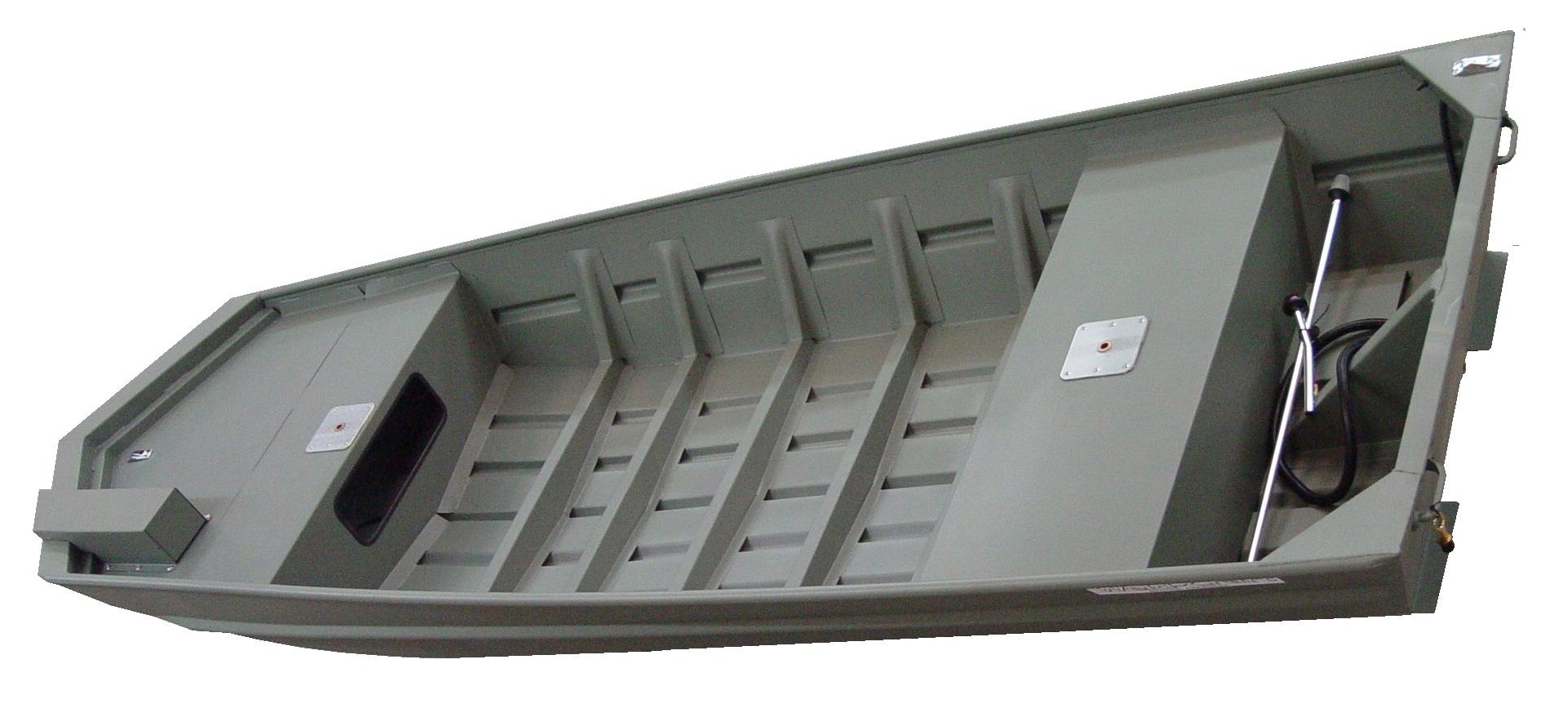

UVCDS or UVCDL

Front Deck; Rear Seat; O.D. Green Paint



Letter Designations:

S = Short Shaft (for 15" Shaft Motor)
L = Long Shaft (for 20" Shaft Motor)
XL = X-Long Shaft (for 25" Shaft Motor)
R = Rear Seat; Center Seat; Bow Seat
T = 4" Prop Tunnel
JT = 2" Jet Tunnel
P = Pontoons
C = Rear Seat; NO Center Seat; Bow Seat (some models may include Rear Pods behind the Rear Seat for extra flotation)
D = Front Deck
FCLW = Full Center Seat Livewell
CBLW = Center Seat Box Livewell
SSLW = Side Seat Livewell
UV = Up-Swept V Bow; 5 V Transom
MUV = Up-Swept V Bow;  Flat Transom
V = Down-Swept V Bow; 5 V Transom
MV = Down-Swept V Bow; Flat Transom


ALL specifications are for STANDARD RECREATIONAL Models ONLY.  Special orders may alter Horse Power &/or Capacity Specifications.

WELD-CRAFT .080 FLAT JON BOATS SPECIFICATIONS

MODEL HULL LENGTH BOTTOM BEAM SIDES APPROX.
BOAT
WEIGHT
SHAFT MANUAL HP REMOTE HP PERSONS PERSON
CAPACITY
BOAT
CAPACITY
1236 RS .080 12' 36" 59" 19" 175 16" 15 N/A 3 423 552
1236 RL .080 12' 36" 59" 19" 175 21" 25 N/A 3 423 552
1436 RS .080 14' 36" 59" 19" 195 16" 25 N/A 3 423 664
1436 RL .080 14' 36" 59" 19" 195 21" 25 N/A 3 423 664
1536 RS .080 15' 36" 59" 19" 215 16" 25 N/A 3 423 718
1536 RL .080 15' 36" 59" 19" 215 21" 25 N/A 3 423 718
1636 RS .080 16' 36" 59" 19" 235 16" 25 N/A 4 564 773
1636 RL .080 16' 36" 59" 19" 235 21" 25 N/A 4 564 773
1836 RS .080 18' 36" 59" 19" 255 16" 35 N/A 4 564 886
1836 RL .080 18' 36" 59" 19" 255 21" 35 N/A 4 564 886
2036 RS .080 20' 36" 59" 19" 275 16" 40 N/A 5 705 999
2036 RL .080 20' 36" 59" 19" 275 21" 40 N/A 5 705 999



MODEL HULL LENGTH BOTTOM BEAM SIDES APPROX.
BOAT
WEIGHT
SHAFT MANUAL HP REMOTE HP PERSONS PERSON
CAPACITY
BOAT
CAPACITY
1242 RS .080 12' 42" 65" 19" 215 16" 15 N/A 3 423 607
1242 RL .080 12' 42" 65" 19" 215 21" 15 N/A 3 423 607
1442 RS .080 14' 42" 65" 19" 230 16" 25 N/A 3 423 737
1442 RL .080 14' 42" 65" 19" 230 21" 25 N/A 3 423 737
1542 RS .080 15' 42" 65" 19" 240 16" 25 N/A 4 564 797
1542 RL .080 15' 42" 65" 19" 240 21" 25 N/A 4 564 797
1642 RS .080 16' 42" 65" 19" 250 16" 30 N/A 4 564 860
1642 RL .080 16' 42" 65" 19" 240 21" 30 N/A 4 564 860
1842 RS .080 18' 42" 65" 19" 270 16" 40 N/A 5 703 989
1842 RL .080 18' 42" 65" 19" 270 21" 40 N/A 5 703 989
2042 RS .080 20' 42" 65" 19" 290 16" 40 N/A 5 703 1102
2042 RL .080 20' 42" 65" 19" 290 21" 40 N/A 5 703 1102


MODEL HULL LENGTH BOTTOM BEAM SIDES APPROX.
BOAT
WEIGHT
SHAFT MANUAL HP REMOTE HP PERSONS PERSON
CAPACITY
BOAT
CAPACITY
1444 RS .080 14' 44" 67" 22" 260 16" 25 N/A 4 564 737
1444 RL .080 14' 44" 67" 22" 260 21" 30 N/A 4 564 737
1544 RS .080 15' 44" 67" 22" 275 16" 25 N/A 4 564 797
1544 RL .080 15' 44" 67" 22" 275 21" 40 N/A 5 705 1061
1644 RS .080 16' 44" 67" 22" 295 16" 35 N/A 4 564 906
1644 RL .080 16' 44" 67" 22" 295 21" 40 N/A 6 846 1145
1844 RS .080 18' 44" 67" 22" 315 16" 40 N/A 5 705 1107
1844 RL .080 18' 44" 67" 22" 315 21" 40 N/A 6 846 1319
2044 RL .080 20' 44" 67" 22" 335 21" 40 N/A 6 846 1492


WELD-CRAFT .100 FLAT JON BOATS SPECIFICATIONS

MODEL HULL LENGTH BOTTOM BEAM SIDES APPROX.
BOAT
WEIGHT
SHAFT MANUAL HP REMOTE HP PERSONS PERSON
CAPACITY
BOAT
CAPACITY
1248 SSRS .100 12' 48" 71" 22" 320 17" 30 N/A 3 423 706
1248 SSRL .100 12' 48" 71" 22" 320 21" 30 N/A 3 423 801
1248 TSRS .100 12' 48" 72" 24" 325 17" 30 N/A 3 423 706
1248 TSRL .100 12' 48" 72" 24" 325 21" 30 N/A 4 564 906
1448 SSRS .100 14' 48" 71" 22" 345 17" 40 N/A 4 564 859
1448 SSRL .100 14' 48" 71" 22" 345 21" 40 N/A 4 564 973
1448 TSRS .100 14' 48" 72" 24" 350 17" 40 N/A 4 564 859
1448 TSRL .100 14' 48" 72" 24" 350 21" 40 N/A 5 705 1098
1648 SSRS .100 16' 48" 71" 22" 385 17" 40 N/A 5 705 1007
1648 SSRL .100 16' 48" 71" 22" 385 21" 40 60 5 705 1140
1648 TSRS .100 16' 48" 72" 24" 390 17" 40 N/A 5 564 1007
1648 TSRL .100 16' 48" 72" 24" 390 21" 50 60 6 846 1286
1748 SSRS .100 17' 48" 71" 22" 405 17" 50 N/A 5 705 1081
1748 SSRL .100 17' 48" 71" 22" 405 21" 50 60 5 705 1155
1748 TSRS .100 17' 48" 72" 24" 410 17" 50 N/A 5 705 1081
1748 TSRL .100 17' 48" 72" 24" 410 21" 60 80 6 846 1381
1848 SSRS .100 18' 48" 71" 22" 425 17" 60 N/A 5 705 1155
1848 SSRL .100 18' 48" 71" 22" 425 21" 60 80 6 846 1307
1848 TSRS .100 18' 48" 72" 24" 430 17" 60 N/A 5 705 1155
1848 TSRL .100 18' 48" 72" 24" 430 21" 60 80 7 987 1475
2048 SSRS .100 20' 48" 71" 22" 460 17" 60 N/A 6 846 1304
2048 SSRL .100 20' 48" 71" 22" 460 21" 60 80 7 987 1476
2048 TSRS .100 20' 48" 72" 24" 465 17" 60 N/A 6 846 1304
2048 TSRL .100 20' 48" 72" 24" 465 21" 60 80 8 1125 1664


MODEL HULL LENGTH BOTTOM BEAM SIDES APPROX.
BOAT
WEIGHT
SHAFT MANUAL HP REMOTE HP PERSONS PERSON
CAPACITY
BOAT
CAPACITY
1452 SSRS .100 14' 52" 75" 22" 350 17" 50 N/A 4 564 920
1452 SSRL .100 14' 52" 76" 22" 350 21" 50 60 5 705 1053
1452 TSRS .100 14' 52" 75" 24" 375 17" 50 N/A 4 564 920
1452 TSRL .100 14' 52" 76" 24" 375 21" 50 60 5 705 1166
1552 SSRS .100 15' 52" 75" 22" 370 17" 40 N/A 5 705 999
1552 SSRL .100 15' 52" 76" 22" 370 21" 50 60 5 705 1133
1552 TSRS .100 15' 52" 75" 24" 400 17" 40 N/A 5 705 999
1552 TSRL .100 15' 52" 76" 24" 400 21" 50 60 6 846 1266
1652 SSRS .100 16' 52" 75" 22" 390 17" 50 N/A 5 705 1078
1652 SSRL .100 16' 52" 76" 22" 390 21" 50 60 6 846 1231
1652 TSRS .100 16' 52" 75" 24" 425 17" 45 N/A 5 705 1078
1652 TSRL .100 16' 52" 76" 24" 425 21" 45 60 6 846 1366
1752 SSRS .100 17' 52" 75" 22" 410 17" 50 N/A 5 705 1157
1752 SSRL .100 17' 52" 76" 22" 410 21" 50 60 6 846 1312
1752 TSRS .100 17' 52" 75" 24" 450 17" 50 N/A 5 705 1157
1752 TSRL .100 17' 52" 76" 24" 450 21" 60 80 7 987 1466
1852 SSRS .100 18' 52" 75" 22" 430 17" 65 N/A 6 846 1240
1852 SSRL .100 18' 52" 76" 22" 430 21" 65 80 7 987 1402
1852 TSRS .100 18' 52" 75" 24" 475 17" 50 N/A 5 705 1236
1852 TSRL .100 18' 52" 76" 24" 475 21" 60 80 8 1128 1566
2052 SSRS .100 20' 52" 75" 22" 450 17" 70 N/A 6 846 1316
2052 SSRL .100 20' 52" 76" 22" 450 21" 70 115 6 846 1491
2052 TSRS .100 20' 52" 75" 24" 500 17" 70 N/A 6 846 1316
2052 TSRL .100 20' 52" 76" 24" 500 21" 70 115 8 1128 1770


MODEL HULL LENGTH BOTTOM BEAM SIDES APPROX.
BOAT
WEIGHT
SHAFT MANUAL HP REMOTE HP PERSONS PERSON
CAPACITY
BOAT
CAPACITY
1656 SSRS .100 16' 56" 79" 22" 415 17" 50 N/A 5 705 1147
1656 SSRL .100 16' 56" 80" 22" 415 21" 50 80 6 846 1300
1656 TSRS .100 16' 56" 79" 24" 450 17" 50 N/A 5 705 1147
1656 TSRL .100 16' 56" 80" 24" 450 21" 60 80 7 987 1454
1756 SSRS .100 17' 56" 79" 22" 435 17" 60 N/A 6 746 1230
1756 SSRL .100 17' 56" 80" 22" 435 21" 60 115 6 846 1394
1756 TSRS .100 17' 56" 79" 24" 475 17" 50 N/A 5 705 1230
1756 TSRL .100 17' 56" 80" 24" 475 21" 60 115 7 987 1558
1856 SSRS .100 18' 56" 79" 22" 455 17" 65 N/A 6 846 1312
1856 SSRL .100 18' 56" 80" 22" 455 21" 65 115 7 987 1487
1856 TSRS .100 18' 56" 79" 24" 500 17" 65 N/A 6 846 1312
1856 TSRL .100 18' 56" 80" 24" 500 21" 60 115 8 1128 1663
2056 SSRS .100 20' 56" 79" 22" 475 17" 80 N/A 7 987 1483
2056 SSRL .100 20' 56" 80" 22" 475 21" 80 115 9 1269 1679
2056 TSRS .100 20' 56" 79" 24" 525 17" 80 N/A 7 987 1483
2056 TSRL .100 20' 56" 80" 24" 525 21" 80 115 10 1410 1880


MODEL HULL LENGTH BOTTOM BEAM SIDES APPROX.
BOAT
WEIGHT
SHAFT MANUAL HP REMOTE HP PERSONS PERSON
CAPACITY
BOAT
CAPACITY
1660 SSRL .100 16' 60" 83" 22" 497 22" 65 80 6 987 1368
1660 DSRL .100 16' 60" 85" 26" 517 22" 70 80 8 1128 1528
1760 SSRL .100 17' 60" 83" 22" 527 22" 70 80 7 987 1478
1760 DSRL .100 17' 60" 85" 26" 547 22" 75 80 8 1128 1638
1860 SSRL .100 18' 60" 83" 22" 557 22" 75 115 7 987 1578
1860 DSRL .100 18' 60" 85" 26" 577 22" 80 115 8 1128 1739
1960 SSRL .100 19' 60" 83" 22" 577 22" 80 115 8 1128 1680
1960 DSRL .100 19' 60" 85" 26" 597 22" 80 115 8 1128 1840
2060 SSRL .100 20' 60" 83" 22" 597 22" 80 115 8 1128 1781
2060 DSRL .100 20' 60" 85" 26" 617 22" 80 115 8 1128 1942


MODEL HULL LENGTH BOTTOM BEAM SIDES APPROX.
BOAT
WEIGHT
SHAFT MANUAL HP REMOTE HP PERSONS PERSON
CAPACITY
BOAT
CAPACITY
1870 SSRL .100 18' 70" 93" 22" 575 22" 90 150 8 1128 1766
1870 DSRL .100 18' 70" 96" 26" 597 22" 90 150 10 1410 1971
2070 SSRL .100 20' 70" 93" 22" 660 22" 100 150 10 1410 1990
2070 DSRL .100 20' 70" 96" 26" 677 22" 100 150 11 1551 2225
